Neon sign supplies & parts department

I have parts & supplies to help you build a neon sign,
or repair and restore your neon beer or other neon sign.

I have these items in stock and ship quickly
using Priority mail.

I DO NOT "drop ship" from a warehouse as that
slows the process down and increases your shipping cost.


I have Evertron & Enhance "OEM" type power supplies
but they can be used for any indoor neon sign.
I also carry small core & coil transformers.
I stock glass housings too.

What you see is what I have, I can't special order.



If you are ordering neon glass I can include
the neon supplies you need.
If you want only supplies there is a $7.50 minimum.
As always I will charge actual shipping on these items.
Most small orders ship for $3.50 first class and larger orders
can ship in a priority bag for $8.
(just trying to save you $$)

Email me your list and I will send you an invoice.
I do have buy it now buttons on power supplies
but if you need mixed parts email first.

budman1 @ steinville.com
(remove the spaces, too much spam)





1  support.JPG (71406 bytes)    $0.70ea
New neon tube stand off / tube support / mount, all clear color.
These are tie down style, extra wide to handle any size neon glass tube.

1a      $ Sold and discontinued

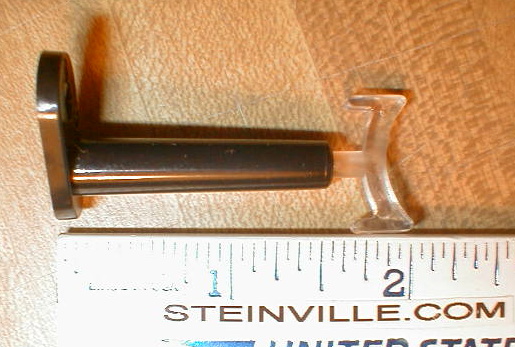

Clear off set tube mount for those hard to mount places.
These are 1 3/4" tall.



1b $ 0.70ea
Clear plastic neon tube support or glass holder.
Snaps on and needs no tie wire.
2" tall, fits many sizes of glass.



1c  Glass-support.JPG (66740 bytes) $ 0.80ea
Glass neon tube support or mount with nickel plated brass base.
This is the classic / vintage style support used on porcelain neon signs.
2" tall with tie wire already on each one.



Unless noted all the boots below fit 12/13mm electrodes.

2  cap.JPG (61366 bytes)  $0.80
13mm neon tube to wire boot or end cap, this style allows the
wire to lay next to the tube, reverse style.

3  15mm-neon-a.JPG (46497 bytes)  Cap-neon-15mm.JPG (33127 bytes) $0.80
15mm neon tube to wire boot / end cap, this style allows the
wire to lay next to the tube, reverse style.



4  boot1.JPG (59141 bytes)  $ SOLD OUT
Small tapered wire to neon tube boot or short stop, 13mm.
OEM on some older beer signs.

5  13-Short_stop.JPG (53039 bytes)  $ Sold out
Larger wire to neon tube boot or short stop, 13mm

6  Short_stop_15.JPG (53039 bytes)  $0.60
Larger wire to neon tube boot or short stop, 15mm

7  insul1.JPG (39643 bytes)  $ Sold out
Glass neon tube to neon tube sleeve.
These are new (NOS), the rubber boots still have talc on them.

8  sleeveHD.JPG (45529 bytes) $SOLD OUT

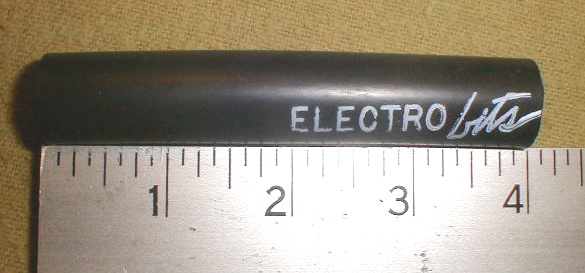

Neon tube to neon tube sleeve.
A thick heavy duty one.

9  sleeve1.JPG (53578 bytes)  $Sold
Neon tube to neon tube sleeve.
This one is for smaller than the usual neon beer sign tube electrode (12mm)

10  sleeve2.JPG (63376 bytes)  $0.60ea
Neon tube to neon tube sleeve.
This one is for the usual size neon beer sign tube.
Extra soft and flexible.

11  3-electrode_fix.JPG (94762 bytes) 1-ELECTRODE-fix.jpg (13600 bytes) 2-ELECTRODE_Fix.jpg (10675 bytes) $5ea
Electrode fix cap.
Do you have a neon tube electrode with the wires broken off ?
This cap can cure your problem.
They are for 15mm electrodes, you need to adapt them to smaller ones.

12  shrink1.JPG (34028 bytes) shrink2.JPG (57379 bytes) $0.25 ea
      Large shrink tube, fits over neon wire sleeves and boots.

13 tiewire.JPG (125433 bytes)  $0.75 ea
Copper neon tube mount tie down wire.
Each bundle has 10 wires

14 Tube_kit1.JPG (92489 bytes)  $2ea
Plastic neon tube mount tie down kit.
For Busch mountain and other signs using this system for border mounting.
One kit has 6 plastic "wires" & 6 metal crimps.
Note the cork pads pictured are not included (sorry but they are all gone).

15 P1010010.JPG (75105 bytes) transfeet2.JPG (55531 bytes) $ Sold out
Transformer feet. These replace the rubber feet on the heavy coil type trans.
You get 4 in a set.

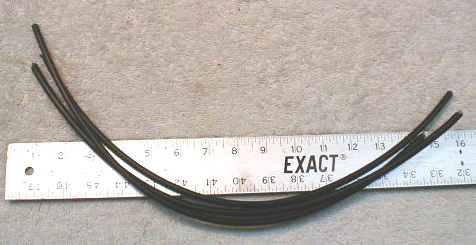

High voltage wire.


16  bulk neon wire.JPG (38347 bytes)  $0.80 per foot.
I offer "off the roll" cut lengths of 15kv (15,000 volt) 14ga
GTO high voltage wire for neon signs.
I have high quality name brand Paige "Tuf-Hide" wire, not cheap import crapola.
You can now get as much as you want for any project or just to keep
around for your future projects.



 17  White-Silicone.JPG (128316 bytes)    $ Sold out
 WHITE SILICONE GTO high voltage wire for neon signs, off the roll cut to length.
 Same quality brand as above, Paige "Tuf Hide 15,000 volt, 14ga.
 Great for indoor neon instillations where wire is exposed and the white wire blends in better.
 Super soft and flexable.



Neon transformers / power supplies

I have new shipping on power supplies.
You can buy any mix of transformers
(# 19-27) for $8 shipping for the first plus only
$2 for each additional transformer!




18a
(NOT model 6035, a non UL listed model)
CPI advanced "universal" neon sign transformer / power supply.
This will run any sign requiring up to 6,000 volts (35ma).
Check your sign to see.
$ SOLD OUT

Complies with Secondary Ground Fault UL 2161.
Self Adjusting to neon load.
Absolutely NO mercury migration.
Auto Shutdown & Overload Protection.
6' grounded cord. Features on/off pull-chain.
24" GTO wires.
Indoor use only.






18b wpe5.jpg (4137 bytes)  wpe7.jpg (9455 bytes) 10,000 V - Model CPI-10-35 -- UL listed
(NOT model 10035, a non UL listed model)

CPI advanced "universal" neon sign transformer / power supply.
This will run any sign requiring up to 10,000 volts (35ma).
Check your sign to see.
$ SOLD OUT


Complies with Secondary Ground Fault UL 2161.
Self Adjusting to neon load.
Absolutely NO mercury migration.
Auto Shutdown & Overload Protection.
6' grounded cord. Features on/off pull-chain.
24" GTO wires.
Indoor use only.



18c 12047 pic.jpg (54666 bytes) wpe7.jpg (9455 bytes) 12,000 V - Model 12EZ -- UL listed
CPI advanced "universal" neon sign transformer / power supply.
This will run any sign requiring up to 12,000 volts (42ma).
Check your sign to see.
$ SOLD OUT
(US price only, foreign shipping will cost more).

Complies with Secondary Ground Fault UL 2161.
Self Adjusting to neon load.
Absolutely NO mercury migration.
Auto Shutdown & Overload Protection.
6' grounded cord. Features on/off pull-chain.
24" GTO wires.
Indoor use only.


Enhance neon transformers / power supply

These are good for bolt on / OEM exact replacement
 for many neon beer signs.

I have new shipping on power supplies.
You can buy any mix of transformers
(# 18a-27) for $8 shipping for the first plus only
$2 for each additional transformer!



19a  EH-1210_a.JPG (142790 bytes) $ No longer made
Enhance EH-1210 neon "sequencing"
transformer /power supply.
These have been discontinued by Enhance, they recommend
using the EH-1220 (below) to replace your EH-1210.

19b N-EH-1220.JPG (132246 bytes) $ No longer made (believe it or not)
Enhance EH-1220 neon transformer /power supply.

See the #23 Evertron 224 below as a substitute.





Open core & coil transformers



20 3500-a.JPG (13460 bytes)  3500-b.JPG (9845 bytes) $33.95

A good replacement for the discontinued Acme / Actown FGA3424-02 (03) or  current mfg # WH-7016
3500 volt, 8ma output core and coil neon sign transformer, 120v input.
These are used in large neon clocks and other neon  advertising signs.
Can be used for any neon project.
I have also sold these for ozone machines and bug zappers.
These are 2" thick at the coils.
Designed to run 6' of clear glass red neon or 8' of color in 10mm dia.
Will run more length in larger diameter glass.





21   5000-a.JPG (50665 bytes) 5000-b.JPG (59817 bytes)  $39.95

Replaces # WH-7025
50
00 volt, 8ma output core and coil neon sign transformer, 120v input.
These are used in large neon clocks and other neon  advertising signs.
Can be used for any neon project.
I have also sold these for ozone machines and bug zappers.
These are 2.5" thick at the coils.
Designed to run 7' of clear glass red neon or 11' of color in 10mm dia.
Will run more length in larger diameter glass.




21a  6000-20a.JPG (95578 bytes) 6000-20b.JPG (80120 bytes) 6000-20c.JPG (74871 bytes)  $Sold out

6000 volt, 20ma output core and coil neon sign transformer, 120v input.
These are used in large neon clocks and other neon  advertising signs.
Good for large Cleveland / Aztec type clocks with 2 rings (measure your glass).
Can be used for any neon project.
I have also sold these for ozone machines and bug zappers.
These are 3.5" thick at the coils.
Designed to run 11' of clear glass red neon or 14' of color in 10mm dia.
Will run 14' of clear red neon or 17' of color in 12mm dia.
Will run more length in larger diameter glass.






Evertron

These are US made & original equip on many neon beer signs.

I have new shipping on transformers.
You can buy any mix of transformers
(# 19a-27) for $8 shipping for the first plus only
$2 for each additional transformer!




22  3612_a-evertron_1.JPG (64311 bytes) 3612_b-evertron_2.JPG (86474 bytes)  $79
Evertron 3612 neon sign power supply
This replaces the older Evertron models 1212 & 2612 (800-0128) .
Special neon power supply w/low voltage output for motion beer signs
Upto 10kv sign volts, 27ma neon power supply, non-dimming
Has a plugin with 2 low voltage (20-22v) outputs .
Input Voltage: 120 VAC
10' cord, 22" GTO leads
8" mounting center holes




23  224.jpg (56701 bytes)  Discontinued

Evertron 224 neon power supply
Upto 3.5kv sign volts, 18mA neon power supply
WITHOUT the 12v power supply



 24 226H.jpg (49697 bytes) $50
Evertron 226h neon sign power supply
Upto 6kv sign volts, 25ma neon power supply, non-dimming
Replaces Evertron Model 226
Input Voltage: 120 VAC
10' cord, 22" GTO leads
8" mounting center holes


24a
    New 226H.JPG (45330 bytes) IEC pigtail.JPG (139650 bytes) Copy of 226H old IEC.JPG (66831 bytes)  $49
Evertron 226h IEC type plugin neon sign power supply.
Same specs as the 226h above.
Some call this a dual transformer as some signs use
2 of this style with a 'Y" cord



25 3610.jpg (40413 bytes) $56
Evertron 3610 neon sign power supply
Upto 10kv sign volts, 27ma neon power supply, non-dimming
Input Voltage: 120 VAC
10' cord, 22" GTO leads
8" mounting center holes


26
59
Evertron 3610-D neon sign power supply
Upto 10kv sign volts, 30ma neon power supply with dimmer
Input Voltage: 120 VAC
10' cord, 22" GTO leads
8" mounting center holes


26a
Evertron 3610D  IEC type plugin neon sign power supply.
Same specs as the 3610D "dimmer" above.
Some call this a dual transformer as some signs use
2 of this style with a 'Y" cord



27  c800-0175.JPG (79918 bytes)  d800-0175.JPG (114795 bytes) $33
Evertron NuAux 800-0175 power supply for motion neon signs.
This model also replaces 800-0174, same unit but this model has
longer leads.

This is also the replacement for the discontinued Everbrite
Aux Xfmr 800-0064 & 800-0065


Neon Glass Housings
No need to buy a case, I will sell you just one or more.
Your choice, mix or match.

I can ship several of these by priority mail
using flat rate packages for aprox $8.

28   $10.95
      GH100 neon glass housing,
      model WWG100.
      Fits in a 1 3/4" hole,
      3 5/8" glass length,
      4 3/8"  overall length top to bolt end.


28a  $10.95
          GH200 neon glass housing,
       Neo-Lite brand SNL-HO-200.
       Fits in a 1 3/8" hole,
       3 1/2" glass length,
       4 1/4"  overall length top to bolt end.


28b  $9.95
          GH200P (peanut) neon glass housing,
       Westrim brand GH-200P.
       Like the GH200 but compact for limited spaces.
       Fits in a 1 3/8" hole,
       2 1/2" glass length,
       3 1/4" overall length top to bolt end.






29 wpe1.jpg (9236 bytes)
4
    Small 6 inch / 4 watt fluorescent bulb.
   These are old stock Sylvania (USA made) F4T5/CW bulbs.
   Some small beer signs and other pop / back bar pieces use
   these bulbs.

budman1 @ steinville.com
(remove the spaces, too much spam)



Neon beer sign parts and supplies, neon transformer, neon sign transformer, beer transformer,
beer sign transformer. Neon ballast, neon balast, neon power supply, beer sign power supply.
Neon beer sign transformer, neon beer sign ballast, CPI neon power supply, beer sign power supply, cpi transformer
Neon sign standoffs, neon mount, neon tube holder, neon tube tie down, neon sign parts, neon tube clips, neon tube clip, neon supplies.
Tube supports, neon GTO wire, high voltage neon wire, HV wire, high voltage wire, neon wire, neon sign wire, transformer wire, tuf-hide gto, tuf-hide noodle flex, paige tuf-hide wire, paige 15,000v wire.
core and coil transformer, core & coil transformer, core and coil power supply, neon core and coil, neon core & coil. Neon clock transformer, neon clock power supply, neon clock ballast neon clock balast. tufhide neon wire, tufhide gto wire, paige tufhide, silicone gto wire, white silicone gto wire, gto-15, gto-15 wire, neon gto-15 wire.
neon transformer wire. Neon parts supplier, neon parts supply. Neon insulators, neon rubber boot..
Everbrite transformer, everbrite neon power supply, evertron neon power supply, evertron transformer.
Mount Vernon sign neon power supply, GHN neon sign power supply, fallon neon sign power supply. Evertron 226, evertron 3610, evertron 2610, evertron plugin transformer, evertron 2610 plug in. Evertron 224, evertron 226h, evertron 6,000v, evertron 10,000 volt, evertron MP10. Enhance transformer, enhance power supply, enhance neon transformer.
Evertron 3610D, everbrite neon transformer, everbrite neon sign power supply. Enhance 1210, enhance 1220. Enhance neon power supply 1210, Enhance neon power supply EH-1220, Enhance neon ballast, enhance neon power supply Franceformer neon, franceformer transformer, franceformer power supply. France former neon. #100 glass housing, #200 glass housing, #200p glass housing, #300 glass housing, glass neon housing, pk housing, neon pk housing, neon Receptacle, federal bushing. Allanson standard neo lite, snl-ho-200, westrim gh-200p, wwg100. Electrode saver cap, neon electrode fix cap, electrode brass cap, brass electrode cover, electrode fixer.
